Bull & Pipe Nose: B & S Taper

Product Description. Bull & Pipe Nose Centers are used in large diameter holding applications. Pipe Nose centers are ground to a point, whereas Bull Nose are truncated and have a nose diameter. Stark Industrial centers are made of bearing quality 52100 steel, with the shank being heat treated to 40 - 45 Rc, and guaranteed to have .0002 or less total-indicator-runout.

Bull & Pipe Nose: B & S Taper

View pricing options by clicking 'More Info'.

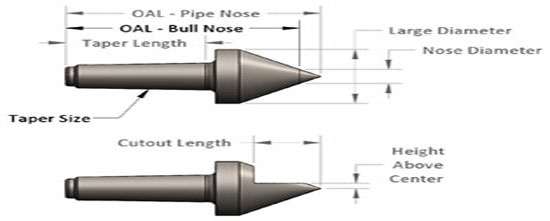

Taper SizeOAL BullOAL PipeTaper LengthLarge DiameterNose DiameterHeight Above CenterLength of Cut Out
7 5.27 5.81 2-7/8 2.375 .625 7/32 1-3/4 More Info
8 5.95 6.49 3-9/16 2.375 .625 7/32 1-3/4 More Info
9 6.83 7.69 4-1/4 2.750 1 9/32 2 More Info
10 7.65 8.5 5 2.750 1 9/32 2 More Info
10C 8.33 9.19 5-11/16 2.750 1 9/32 2 More Info
11 9.35 10.22 5-15/16 3.500 1 11/32 2-1/2 More Info
11C 10.17 11.04 6-3/4 3.500 1 11/32 2-1/2 More Info
12 10.54 11.41 7-1/8 3.500 1 11/32 2-1/2 More Info
