Bull & Pipe Nose: Jarno Taper

Product Description. Bull & Pipe Nose Centers are used in large diameter holding applications. Pipe Nose centers are ground to a point, whereas Bull Nose are truncated and have a nose diameter. Stark Industrial centers are made of bearing quality 52100 steel, with the shank being heat treated to 40 - 45 Rc, and guaranteed to have .0002 or less total-indicator-runout.

Bull & Pipe Nose: Jarno Taper

View pricing options by clicking 'More Info'.

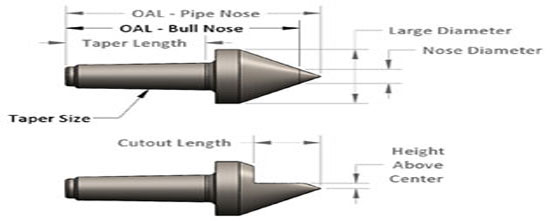

Taper SizeOAL BullOAL PipeTaper LengthLarge DiameterNose DiameterHeight Above CenterLength of Cut Out
7 5.89 6.43 3-1/2 2.375 .625 7/32 1-3/4 More Info
8 6.58 7.44 4 2.750 1 9/32 2 More Info
9 7.08 7.94 4-1/2 2.750 1 9/32 2 More Info
10 7.65 8.51 5 2.750 1 9/32 2 More Info
11 8.15 9.01 5-1/2 2.750 1 9/32 2 More Info
12 9.42 10.29 6 3.500 1 11/32 2-1/2 More Info
13 9.92 10.79 6-1/2 3.500 1 11/32 2-1/2 More Info
14 10.42 11.29 7 3.500 1 11/32 2-1/2 More Info
